500w

Motor Power

48v14ah

Battery Capacity

8-Speed

Gear

5 levels

Pedal Assist

68lb

Weight

Class 2

Ebike Class

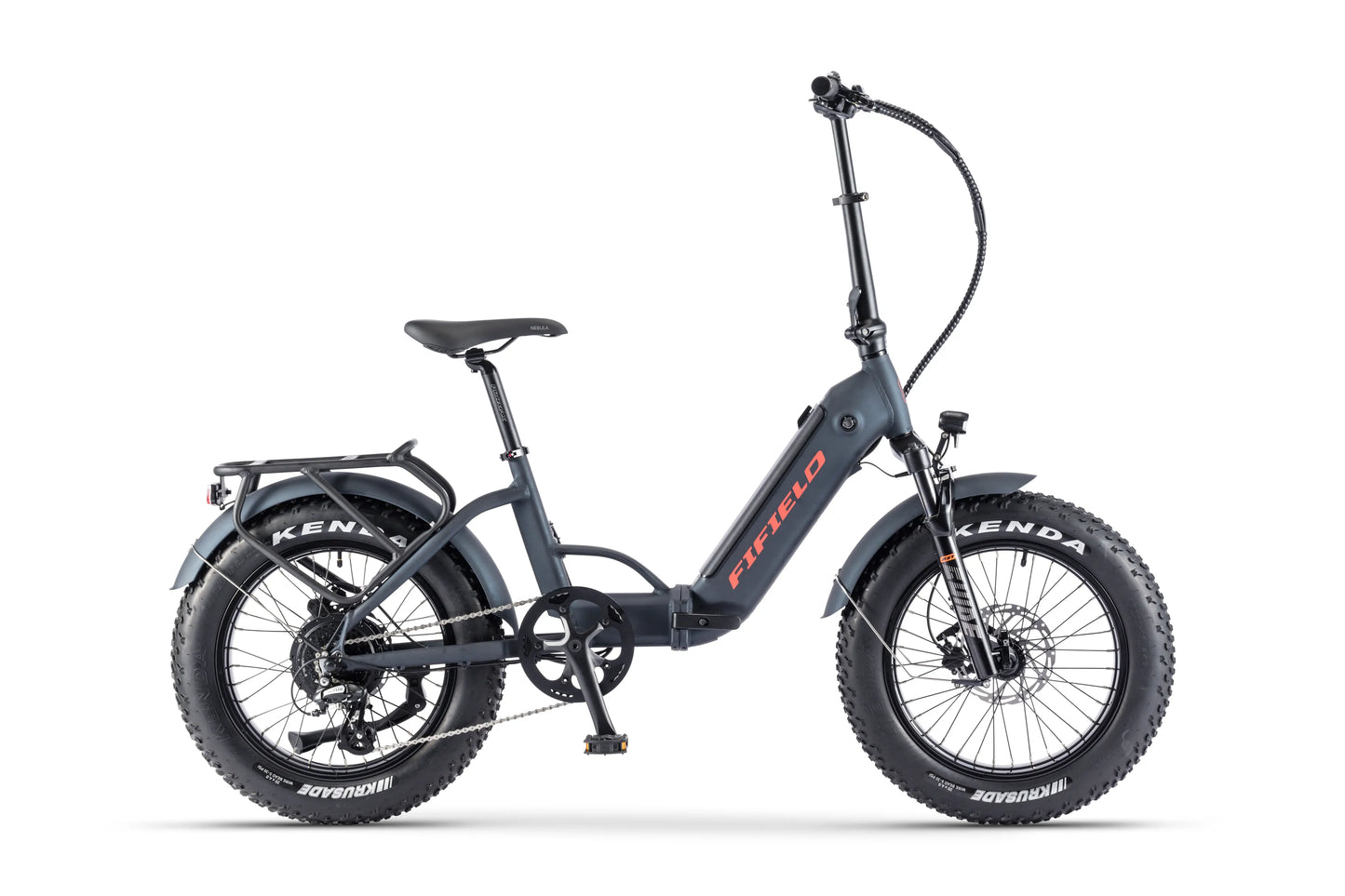

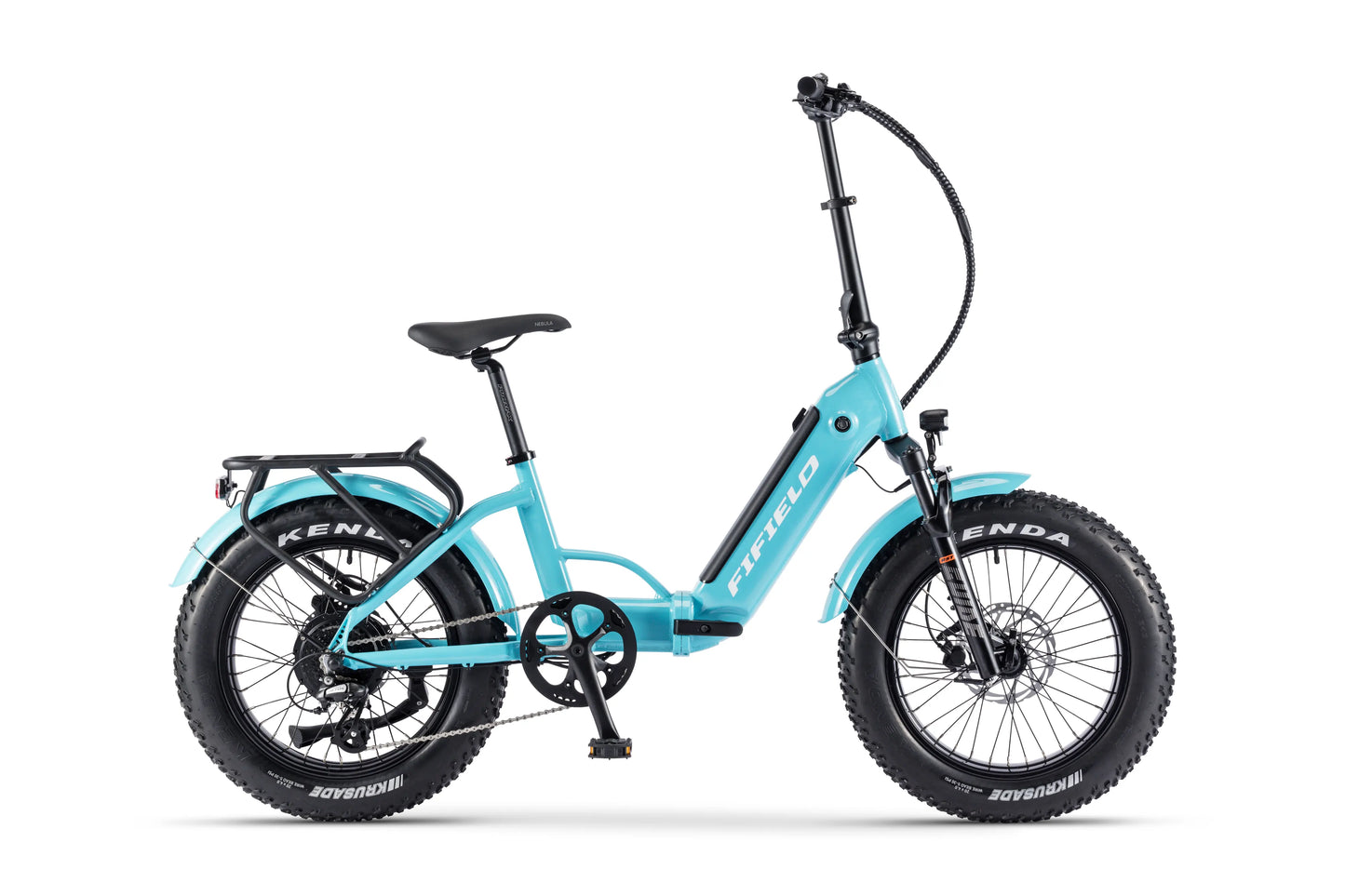

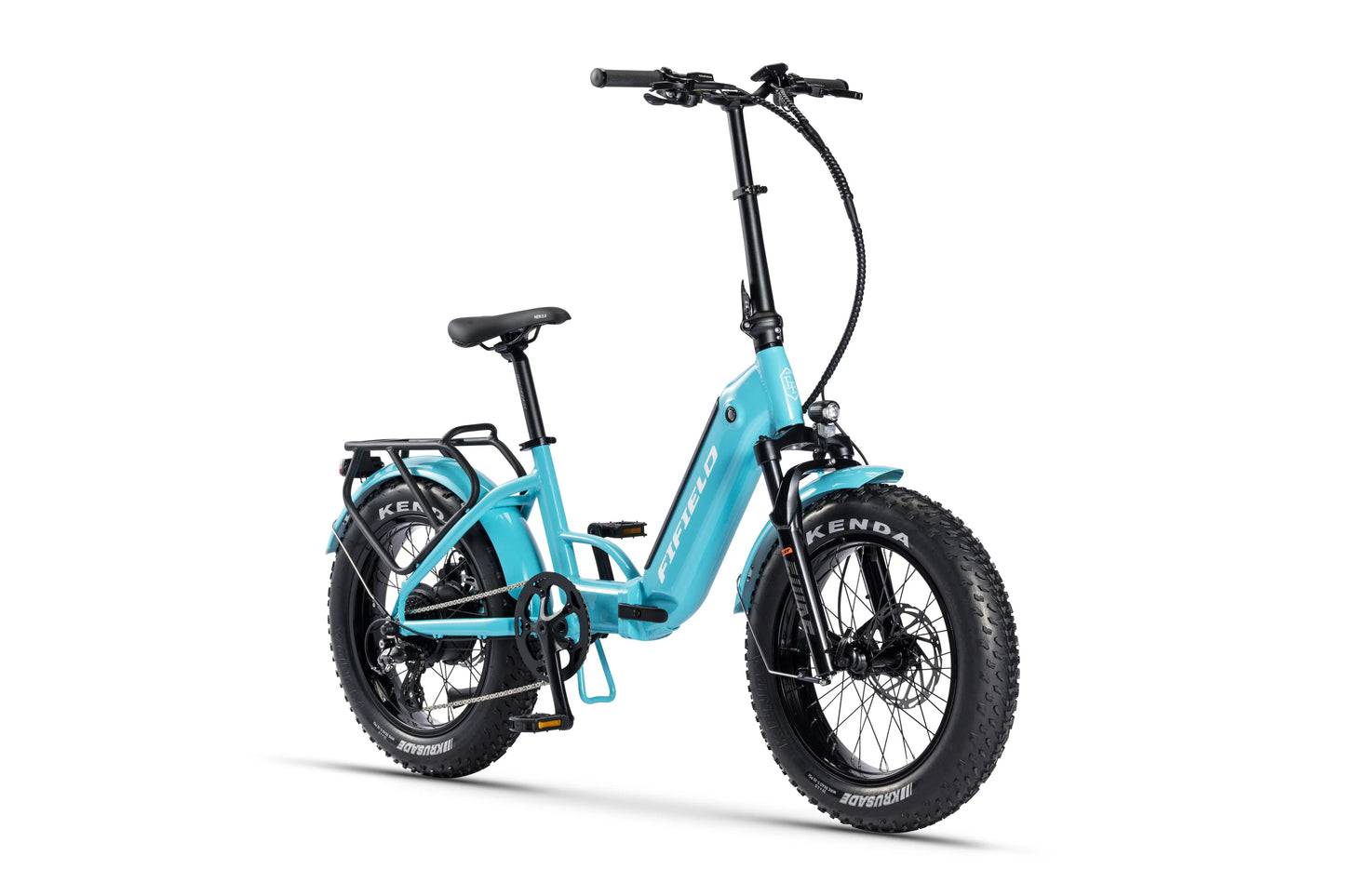

Swell Fold

Swell Fold

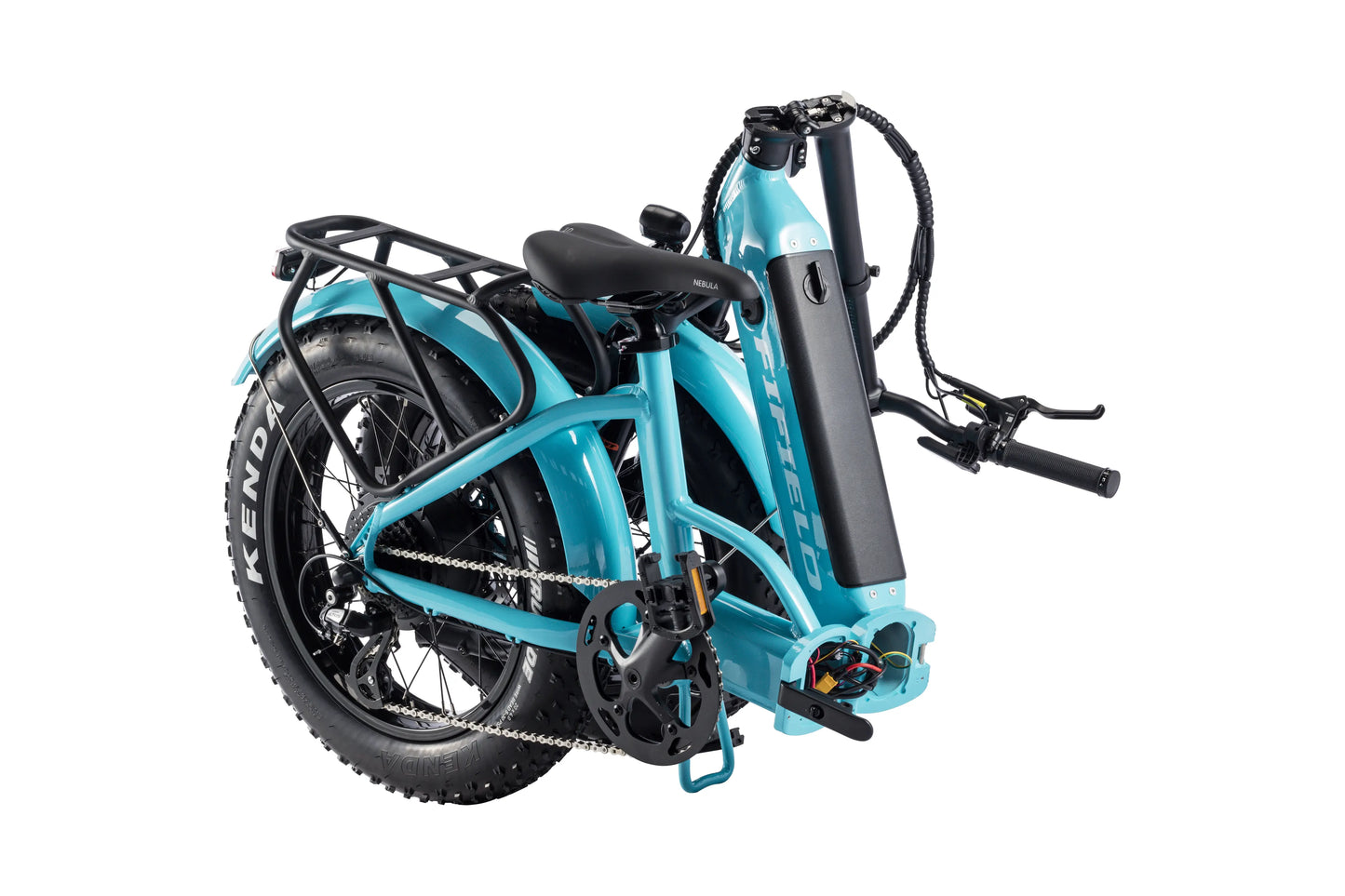

Fold Flat. Ride Supremely.
Sale price $1,999.00 Regular price
Regular price $1,999.00
Color: Black
Compatible Accessories 0 Selected
Swell Fold
Fifield Batteries
Swell Fold
$499.00
Qty
Swell Fold
Fifield Chargers
Swell Fold
$59.00
Qty
View full details

Peak Power

500w

The Comfort Engineered

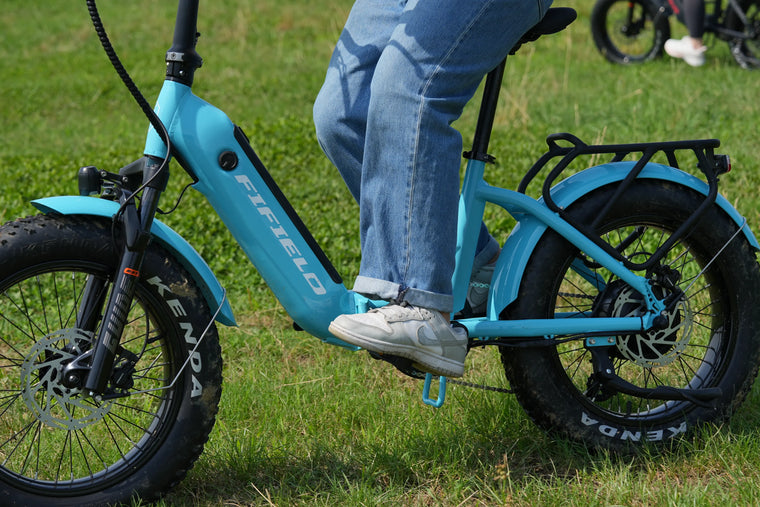

Featuring front suspension, the Swell Fold introduces wider tires and enhanced shock absorption, dramatically smoothing out bumps on uneven surfaces for a supremely plush ride.

Swell Fold

Every detail, from the optimized upright geometry promoting effortless posture to the upgraded hydraulic suspension and new wider contact patches, is part of our custom-engineered Comfort Package designed to coddle your body mile after mile.

General Info
Model
Swell Fold
Rider Height
4'59" - 5'91"
Water Resistance
IPX5
Range
45 miles
Pedal Assist
5 levels
Ideal Use
All Terrain
Frame
Aluminum 6061
Fork
RST GUIDE 20 Coil Fork with Lockout, Preload adjust, Travel 60MM
Rear Spacing
175mm
Fork Spacing
135mm
Frame Style
Step-Through
Front Wheel
20x4.0", 36H, double-wall aluminum fat tire rim, black finish, QR, 13g stainless steel spokes, 135mm spacing, Schrader valve
Rear Wheel
20x4.0", 36H, double-wall aluminum fat tire rim, black finish, hub drive motor with a nutted axle, 13g stainless steel spokes, 175mm spacing, Schrader valve.
Tires
Kenda K-1188 20”*4.0 BK
Motor
Shengyi 48V, 500W, rear hub motor
Motor Torque
80 NM
Display
Key-Disp KD-686 2.0" TFT LCD
Battery
48V/15AH LG Battery Cell
Controller
Lishui 48V, 15A
Throttle
Starunion 300X, IPX5
Sensors
Cadence Sensor
Charger
48V, 2A
Charging time from 0% to 100%
5-8 hours
Lights
front and rear light
Front Brake Rotor
180mm 6 bolt
Rear Brake Rotor
180mm 6 bolt
Front Brake
Tektro HD-E350 Hydraulic disc brake w/o e-cutoff
Rear Brake
Tektro HD-E350 Hydraulic disc brake w/o e-cutoff
Rear Derailleur
Shimano Altus RD-M310 8 Speeds
Chain
KMC Z8.3 NP/NP 1/2"*3/32"*110L
Cassette
11-32T / 8 Speed Shimano CS CS-HG31-8
Chainring BCD
130
Crankset
170mm Crank Arm
Bottom Bracket
Square Taper, 100*159L C:31mm
Pedals
9/16" Composite folding pedals
Chainring
46T
Seatpost
30.4*350L ALLOY, BK
Seat Clamp
Promax 339QX, 35, ALLOY
Handlebars
22.2*25.4*600W*20mm Back Sweep:6°
Grips
Velo,VLG-884-2AD2-L2, 22.2*135mm
Headset
FP-H813Q, ZS 44/28.6, ZS 44/30
Saddle
Selle Royal, NEBULA-A009U
Kickstand
Adjustable 230-290MM, Alloy Black, 40mm hole distance
Rear Rack
ISO 11243:2016 Max Load:25KG
Fenders
Included
A - Seat Tube Length
350mm (13.78")
B - Top Tube Length Horizontal
633mm (24.92")
C - Bottom Bracket Drop
Negative 20mm (0.8")
D - Head Tube Length
140mm (5.51")
E - Head Tube Angle
70°
F - Seat Tube Angle
73°
G - Rear Chainstay Length
419mm (16.5")
H - Front Wheel Center
723mm (28.5")
I - Wheelbase
1141mm (44.9")
J - Reach
526mm (20.71")
K - Stack Height
576mm (22.68")
L - Fork Length
425mm (16.73")
M - Fork Offset
50mm (2")
N - Trail
49mm (1.93")
Wheel Size
20" x 4.0"
Stand Over Height
435mm (17.13")
Rider Height
4'59" - 5'91"

FAQs

What is the speed limit for e-bikes in your state?

Many States in the U.S. have adopted a three-class system to describe the different levels of electric bikes. The classes are as follows:

  • Class 1: pedal assist only; maximum assisted speed of 20 mph.
  • Class 2: throttle assist only; maximum motor-powered speed of 20 mph.
  • Class 3: pedal assist only; maximum assisted speed of 28 mph.

It can be clearly seen that class 1 and 2 are regulated like regular bicycles and will follow the same rules and be allowed to use the same paths and infrastructure as regular bicycles. However, because class 3 e-bikes are capable of higher speeds, they have extra regulations and require additional equipment, although, they are still technically considered a bicycle. Currently, as stated by U.S. Federal Law, class 3 e-bikes have a minimum age of 16 years old to operate and require a helmet. Class 3 e-bikes are also not allowed on standard bike paths. The reason that class 3 e-bikes are allowed to travel at speeds up to 28 mph is because the Consumer Product Safety Commission has clarified that the law does allow e-bikes to travel faster than 20 mph when using foot pedaling and the e-bike’s motor power at the same time.

How do you ride an e-bike?

If you know how to ride a classic bike, you’re all set. An e-bike just adds an electric motor, rechargeable battery, and a controller to the mix, amplifying the fun factor.

How does it work?

Simply activate the motor by pedaling or twisting the throttle. Note: Steering skills are still required!

How far does it go?

Generally, our e-bikes run 20-30 miles on a single charge. This can extend to 50-60 miles with manual pedaling.

How long does it take to get a full charge?

It takes around 3-5 hours to charge fully from 0%.
